Orryx 4s1p | 14.4 V 4.5 Ah Molicel P45B

Precision-Engineered Ultra-High Energy Packs for Aerospace, Defense, Robotics, and Other Demanding Applications

Cell Datasheet

Built to Perform

• Assembled in the USA using grade A, factory-fresh cells

• Proprietary assembly process for low-temp and high-current reliability

• Voltage-matched, thermally optimized for maximum consistency and safety

• ISO 9001 / ISO 14001 / NDAA Compliant

• Certified for transport as Dangerous Goods (UN 38.3 compliant)

• Backed by a Lifetime Warranty & USA-based customer support



Core Specifications

• Nominal Voltage: 14.4 V (4S)

• Max Voltage: 16.8 V

• Min Voltage: 12.0 V

• Recommended Cut-off Voltage: 12.8 V ground / 13.6 V air

• Nominal Capacity: 4500 mAh / 4.5 Ah

• Total Energy: 64.8 Wh

• Max Continuous Discharge: 67.5 A

• Max Charge Rate: 22.5 A or 6 A rapid

• Burst Discharge: 90 A for 10 sec

• Cell Chemistry: Lithium-ion







Mechanical Details

• Cell Type: Molicel P45B

• Configuration: 4S1P

• Dimensions (H x W x L): 2.1 cm x 5.8 cm x 7.2 cm

• Weight: 206g ±3g

• Wire Gauge: 12 AWG

• Connectors: XT60, XT90, or custom

• Balance Plug: JST-XH-5P

• Jacketing: Durable Polyvinyl Chloride (PVC) or optional upgrades

• Operating Temp Range: –17 °C to 80 °C (0 °F to 175 °F)







Available Upgrades

Modular enhancements available upon request:

• Sensors: NTC Thermistors or Digital

• Hard Case: Rugged aluminum-rubber composite

• Custom Wire Lengths / Connector Options / Mounting Features







Integration Notes

Optimal performance is dependent on airflow during both discharge and charge cycles. Packs should be installed where ambient cooling is sufficient to maintain cell skin temperature below 80 °C. Contact us for thermal guidelines or airflow modeling support.





Engineering Support

We offer:

• Custom pack configurations

• Engineered drawings and CAD integration

• System-level energy planning assistance

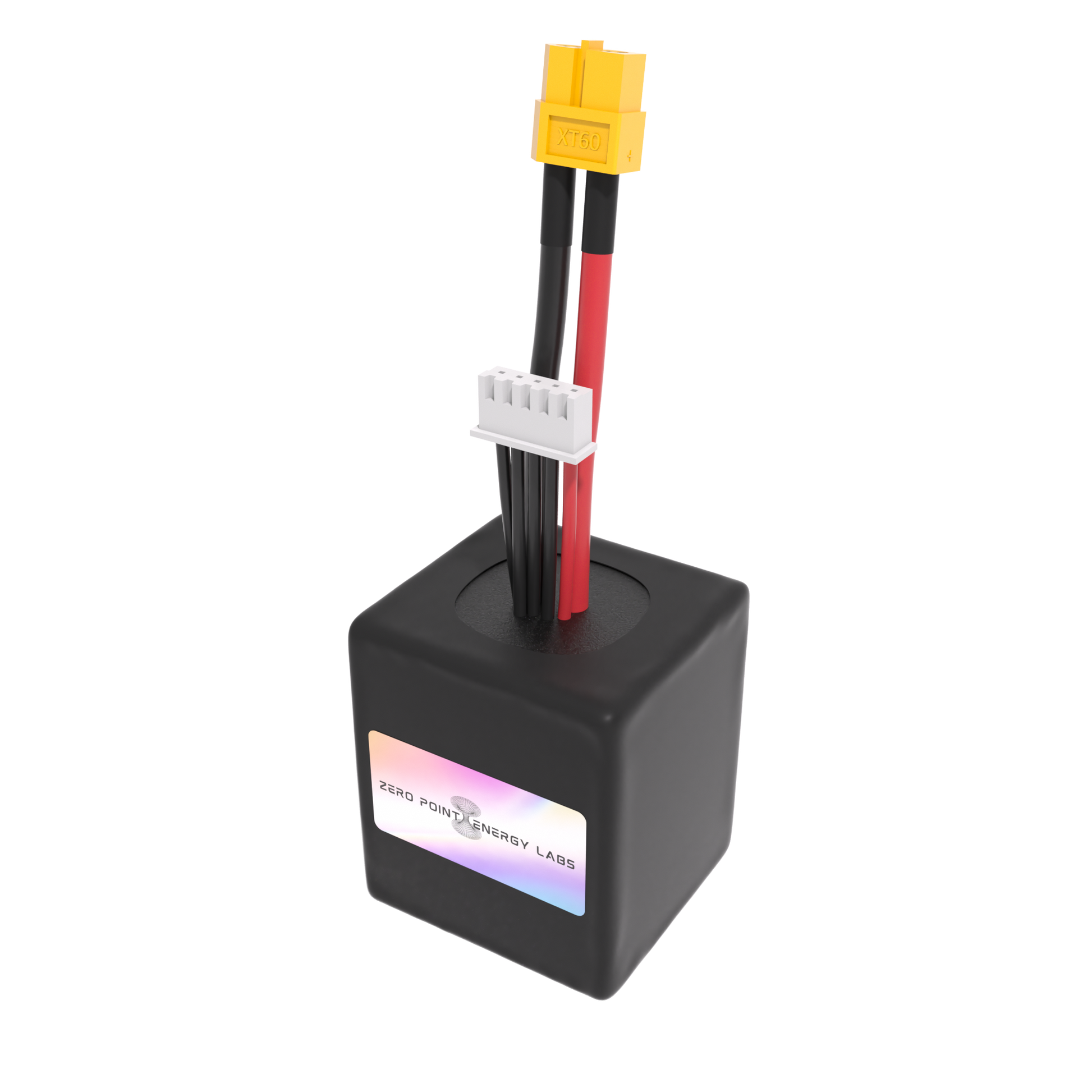

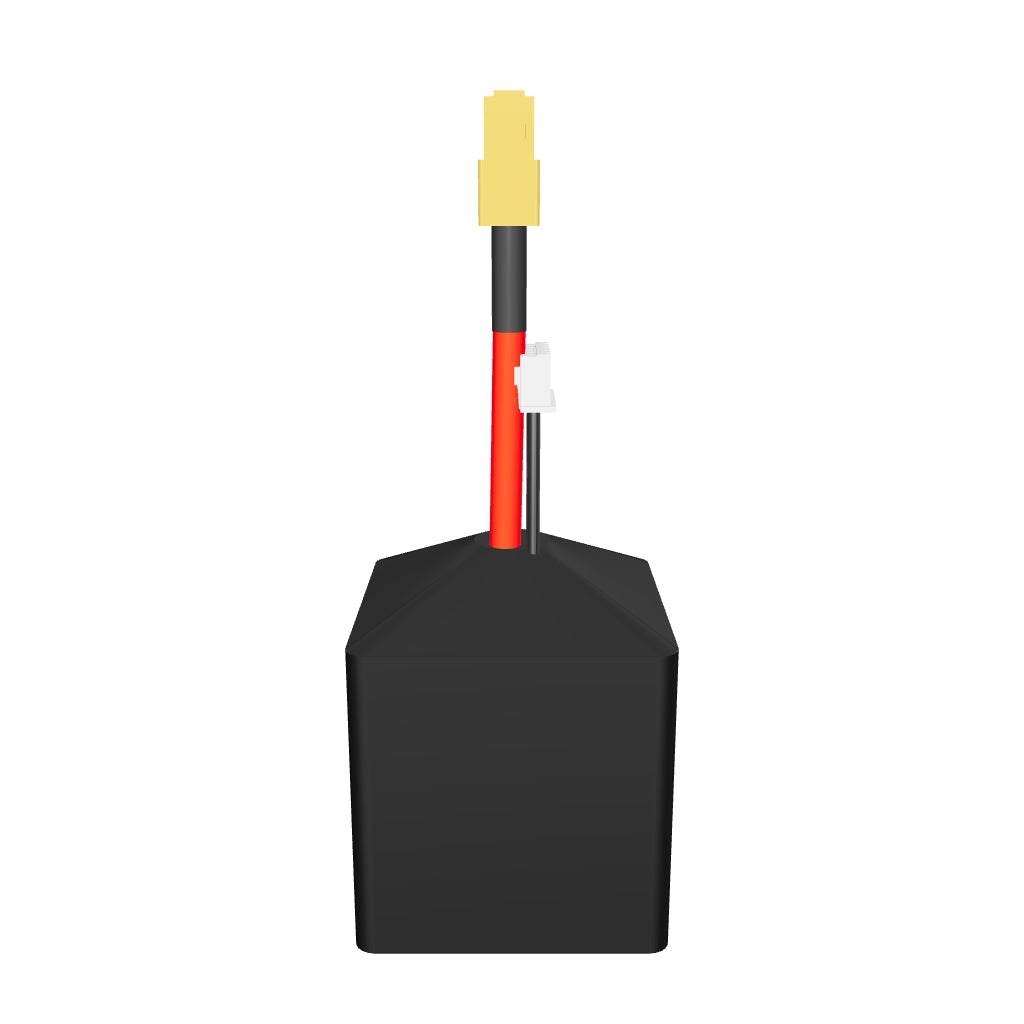

Image for reference only. Actual product may vary in appearance.
